Claudeman

The missing control plane for Claude Code

Agent Visualization • Zero-Lag Input Overlay • Mobile-First UI • Respawn Controller • Multi-Session Dashboard

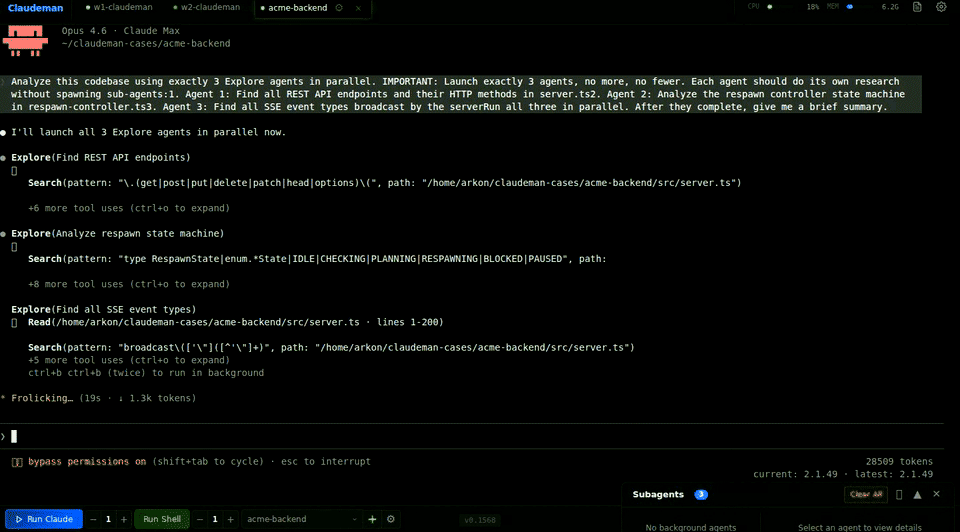

Claudeman — parallel subagent visualization

--- ## Quick Start - Installation ```bash curl -fsSL https://raw.githubusercontent.com/Ark0N/claudeman/master/install.sh | bash ``` This installs Node.js, tmux, and Claude CLI if missing, clones Claudeman to `~/.claudeman/app`, builds it. After install: ```bash claudeman web # Open http://localhost:3000 — press Ctrl+Enter to start your first session ``` **Update to latest version:** ```bash curl -fsSL https://raw.githubusercontent.com/Ark0N/claudeman/master/install.sh | bash -s update ```

Run as a background service

**Linux (systemd):** ```bash mkdir -p ~/.config/systemd/user && printf '[Unit]\nDescription=Claudeman Web Server\nAfter=network.target\n\n[Service]\nType=simple\nExecStart=%s %s/dist/index.js web\nRestart=always\nRestartSec=10\n\n[Install]\nWantedBy=default.target\n' "$(which node)" "$HOME/.claudeman/app" > ~/.config/systemd/user/claudeman-web.service && systemctl --user daemon-reload && systemctl --user enable --now claudeman-web && loginctl enable-linger $USER ``` **macOS (launchd):** ```bash mkdir -p ~/Library/LaunchAgents && printf '\n\nLabelcom.claudeman.webProgramArguments%s%s/dist/index.jswebRunAtLoadKeepAliveStandardOutPath/tmp/claudeman.logStandardErrorPath/tmp/claudeman.log\n' "$(which node)" "$HOME/.claudeman/app" > ~/Library/LaunchAgents/com.claudeman.web.plist && launchctl load ~/Library/LaunchAgents/com.claudeman.web.plist ```

Windows (WSL)

```powershell wsl bash -c "curl -fsSL https://raw.githubusercontent.com/Ark0N/claudeman/master/install.sh | bash" ``` Claudeman requires tmux, so Windows users need [WSL](https://learn.microsoft.com/en-us/windows/wsl/install). If you don't have WSL yet: run `wsl --install` in an admin PowerShell, reboot, open Ubuntu, then install Claude CLI inside WSL: `curl -fsSL https://claude.ai/install.sh | bash`. After installing, `http://localhost:3000` is accessible from your Windows browser.

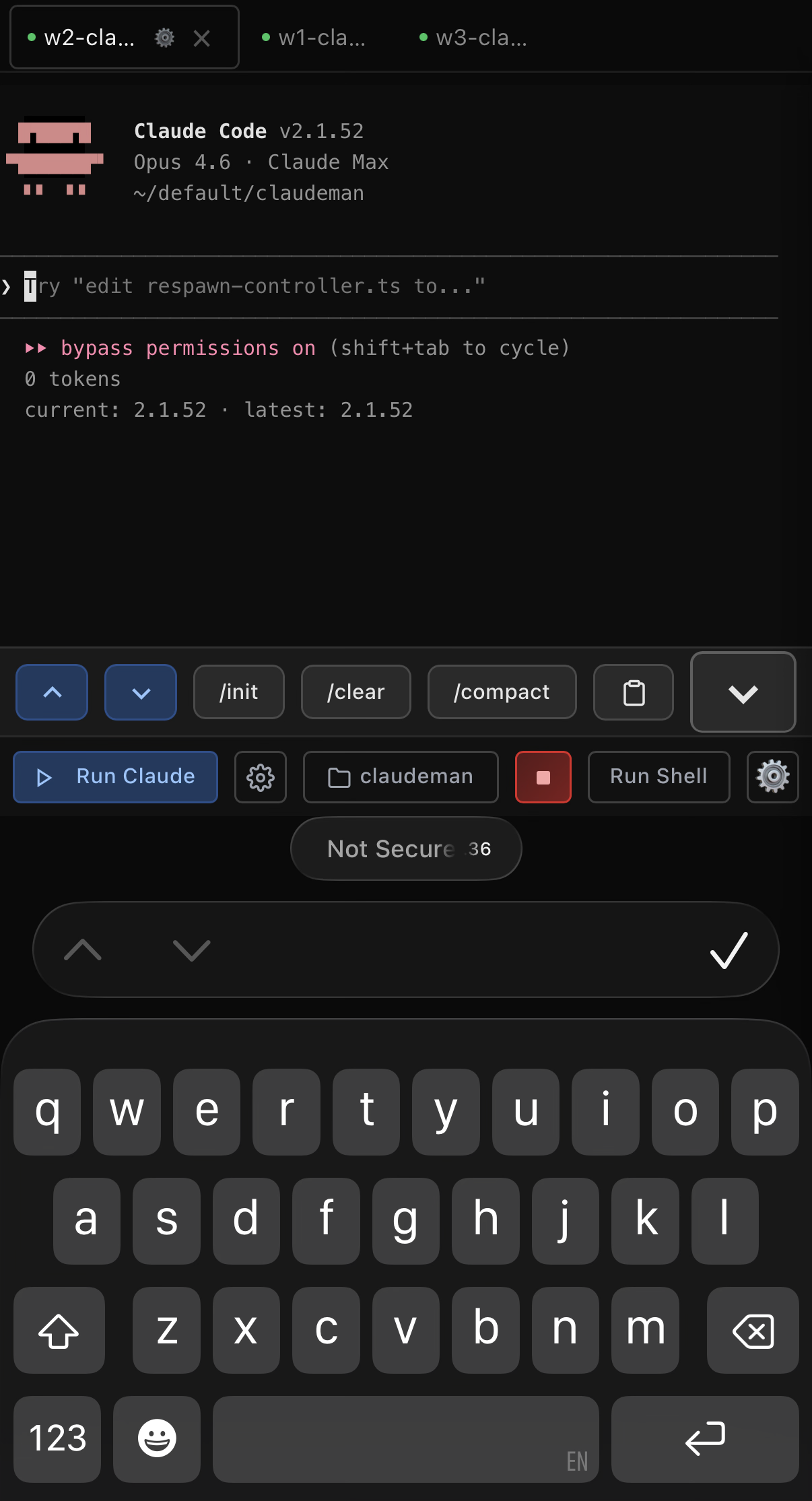

--- ## Mobile-Optimized Web UI The most responsive Claude Code experience on any phone. Full xterm.js terminal with local echo, swipe navigation, and a touch-optimized interface designed for real remote work.

| Terminal Apps | Claudeman Mobile | |:--------------|:-----------------| | 200-300ms input lag over remote | **Local echo — instant feedback** | | Tiny text, no context | Full xterm.js terminal, responsive layout | | No session management | Swipe between sessions, status badges | | No notifications | Push alerts for approvals and idle | | Manual reconnect after drops | tmux persistence — sessions survive anything | | No agent visibility | Background agents in real-time | | Copy-paste slash commands | One-tap `/init`, `/clear`, `/compact` buttons |

- **Swipe navigation** — left/right on the terminal to switch sessions (80px threshold, 300ms) - **Keyboard accessory bar** — `/init`, `/clear`, `/compact` quick-action buttons above the virtual keyboard. Destructive commands (`/clear`, `/compact`) require a double-press to confirm — first tap arms the button, second tap executes — so you never fire one by accident on a bumpy commute - **Smart keyboard handling** — toolbar and terminal shift up when keyboard opens (uses `visualViewport` API with 100px threshold for iOS address bar drift) - **Safe area support** — respects iPhone notch and home indicator via `env(safe-area-inset-*)` - **44px touch targets** — all buttons meet iOS Human Interface Guidelines minimum sizes - **Bottom sheet case picker** — slide-up modal replaces the desktop dropdown - **Native momentum scrolling** — `-webkit-overflow-scrolling: touch` for buttery scroll ```bash claudeman web --https # Open on your phone: https://:3000 ``` > `localhost` works over plain HTTP. Use `--https` when accessing from another device, or use [Tailscale](https://tailscale.com/) (recommended) — it provides a private network so you can access `http://:3000` from your phone without TLS certificates. --- ## Live Agent Visualization Watch Claude's background agents work in real-time. Claudeman monitors every `Task` tool invocation and displays each agent in a draggable floating window with animated Matrix-style connection lines back to the parent session.

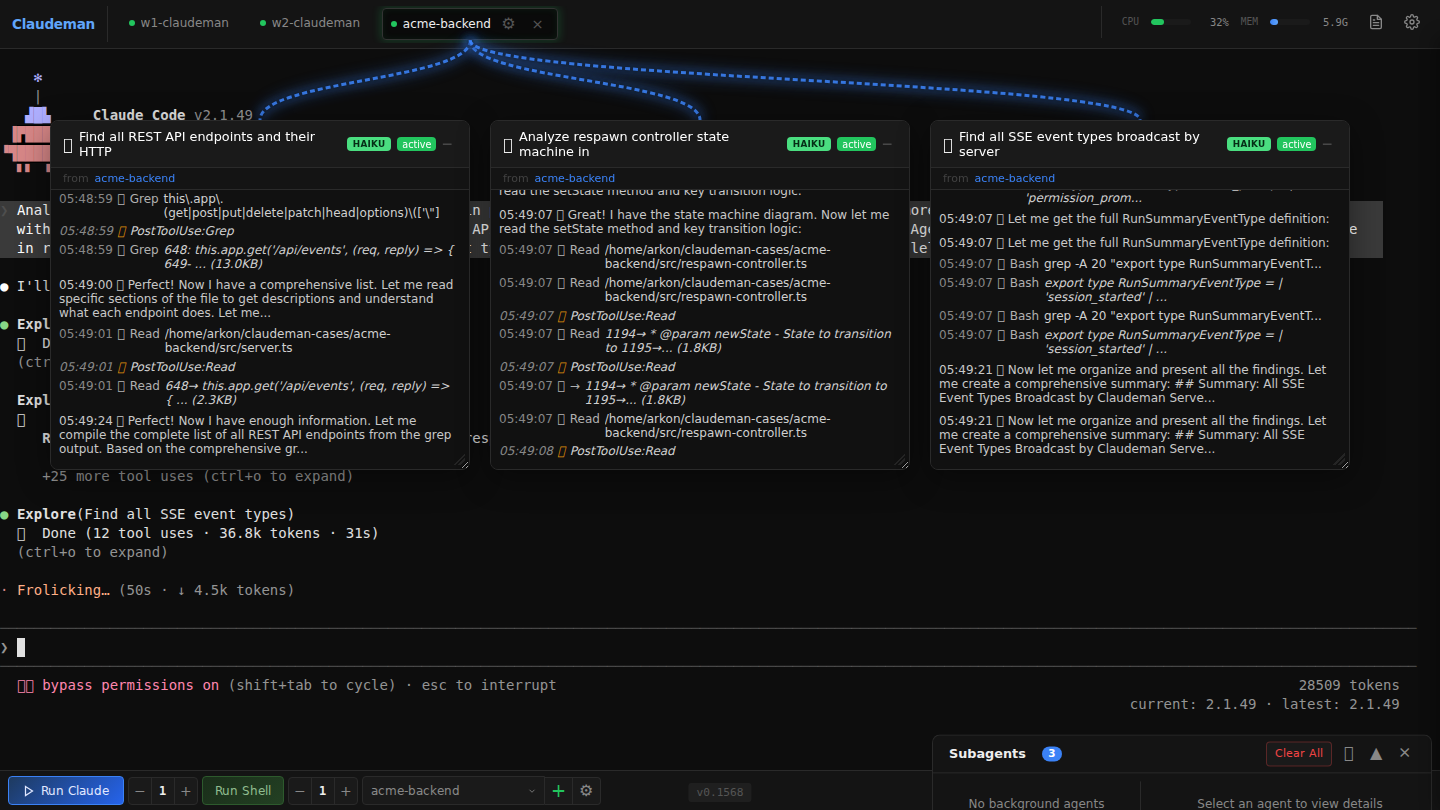

Subagent Visualization

- **Floating terminal windows** — draggable, resizable panels for each agent with a live activity log showing every tool call, file read, and progress update as it happens - **Connection lines** — animated green lines linking parent sessions to their child agents, updating in real-time as agents spawn and complete - **Status & model badges** — green (active), yellow (idle), blue (completed) indicators with Haiku/Sonnet/Opus model color coding - **Auto-behavior** — windows auto-open on spawn, auto-minimize on completion, tab badge shows "AGENT" or "AGENTS (n)" count - **Nested agents** — supports 3-level hierarchies (lead session -> teammate agents -> sub-subagents) --- ## Zero-Lag Input Overlay When accessing Claude Code remotely (VPN, Tailscale, SSH tunnel), every keystroke normally takes 200-300ms to round-trip. Claudeman implements a **Mosh-inspired local echo system** that makes typing feel instant regardless of latency. A pixel-perfect DOM overlay inside xterm.js renders keystrokes at 0ms. Background forwarding silently sends every character to the PTY in 50ms debounced batches, so Tab completion, `Ctrl+R` history search, and all shell features work normally. When the server echo arrives 200-300ms later, the overlay seamlessly disappears and the real terminal text takes over — the transition is invisible. - **Ink-proof architecture** — lives as a `` at z-index 7 inside `.xterm-screen`, completely immune to Ink's constant screen redraws (two previous attempts using `terminal.write()` failed because Ink corrupts injected buffer content) - **Font-matched rendering** — reads `fontFamily`, `fontSize`, `fontWeight`, and `letterSpacing` from xterm.js computed styles so overlay text is visually indistinguishable from real terminal output - **Full editing** — backspace, retype, paste (multi-char), cursor tracking, multi-line wrap when input exceeds terminal width - **Persistent across reconnects** — unsent input survives page reloads via localStorage - **Enabled by default** — works on both desktop and mobile, during idle and busy sessions > Extracted as a standalone library: [`xterm-zerolag-input`](https://www.npmjs.com/package/xterm-zerolag-input) — see [Published Packages](#published-packages). --- ## Respawn Controller The core of autonomous work. When Claude goes idle, the Respawn Controller detects it, sends a continue prompt, cycles `/clear` -> `/init` for fresh context, and resumes — running **24+ hours** completely unattended. ``` WATCHING → IDLE DETECTED → SEND UPDATE → /clear → /init → CONTINUE → WATCHING ``` - **Multi-layer idle detection** — completion messages, AI-powered idle check, output silence, token stability - **Circuit breaker** — prevents respawn thrashing when Claude is stuck (CLOSED -> HALF_OPEN -> OPEN states, tracks consecutive no-progress and repeated errors) - **Health scoring** — 0-100 health score with component scores for cycle success, circuit breaker state, iteration progress, and stuck recovery - **Built-in presets** — `solo-work` (3s idle, 60min), `subagent-workflow` (45s, 240min), `team-lead` (90s, 480min), `ralph-todo` (8s, 480min), `overnight-autonomous` (10s, 480min) --- ## Multi-Session Dashboard Run **20 parallel sessions** with full visibility — real-time xterm.js terminals at 60fps, per-session token and cost tracking, tab-based navigation, and one-click management.

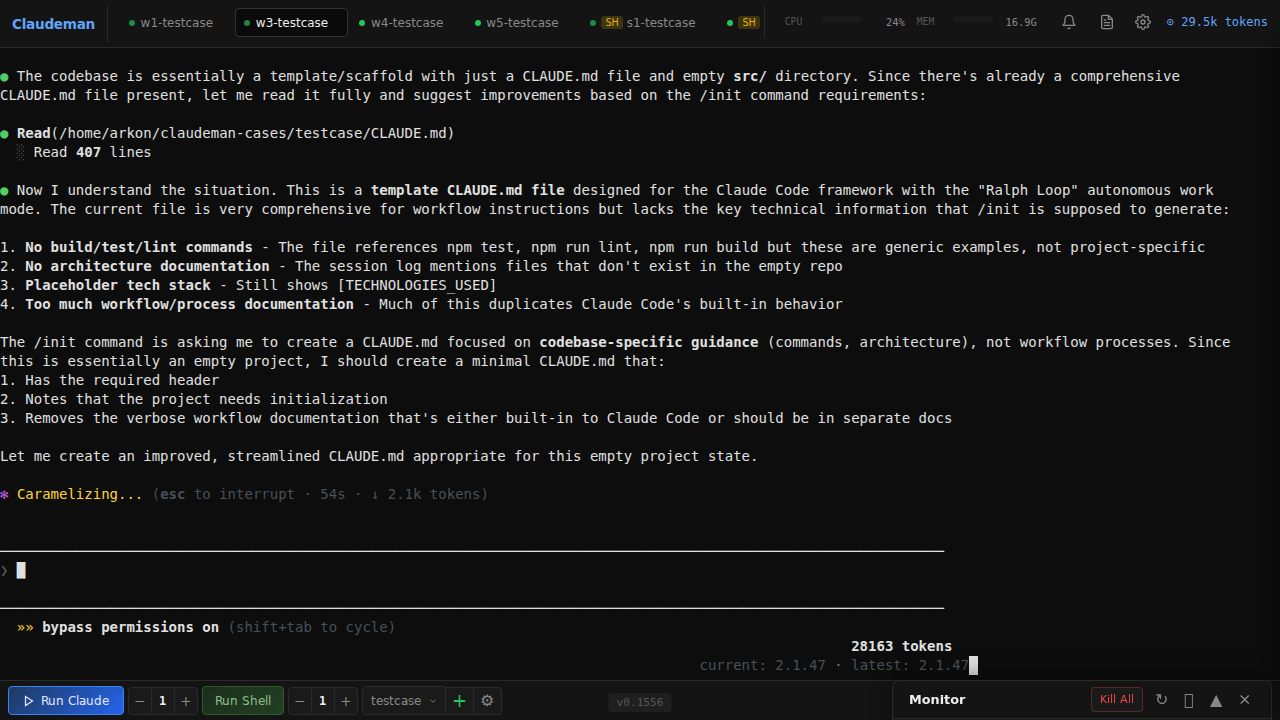

Multi-Session Dashboard

### Persistent Sessions Every session runs inside **tmux** — sessions survive server restarts, network drops, and machine sleep. Auto-recovery on startup with dual redundancy. Ghost session discovery finds orphaned tmux sessions. Claude knows it's managed and won't kill its own session. ### Smart Token Management | Threshold | Action | Result | |-----------|--------|--------| | **110k tokens** | Auto `/compact` | Context summarized, work continues | | **140k tokens** | Auto `/clear` | Fresh start with `/init` | ### Notifications Real-time desktop alerts when sessions need attention — `permission_prompt` and `elicitation_dialog` trigger critical red tab blinks, `idle_prompt` triggers yellow blinks. Click any notification to jump directly to the affected session. Hooks auto-configured per case directory. ### Ralph / Todo Tracking Auto-detects Ralph Loops, `` tags, TodoWrite progress (`4/9 complete`), and iteration counters (`[5/50]`) with real-time progress rings and elapsed time tracking.

### Run Summary Click the chart icon on any session tab to see a timeline of everything that happened — respawn cycles, token milestones, auto-compact triggers, idle/working transitions, hook events, errors, and more. ### Zero-Flicker Terminal Claude Code uses Ink (React for terminals) which redraws the entire screen on every state change. Claudeman implements a 6-layer anti-flicker pipeline for smooth 60fps output across all sessions: ``` PTY Output → 16ms Server Batch → DEC 2026 Wrap → SSE → Client rAF → xterm.js (60fps) ``` --- ## SSH Alternative (`sc`) If you prefer SSH (Termius, Blink, etc.), the `sc` command is a thumb-friendly session chooser: ```bash sc # Interactive chooser sc 2 # Quick attach to session 2 sc -l # List sessions ``` Single-digit selection (1-9), color-coded status, token counts, auto-refresh. Detach with `Ctrl+A D`. --- ## Keyboard Shortcuts | Shortcut | Action | |----------|--------| | `Ctrl+Enter` | Quick-start session | | `Ctrl+W` | Close session | | `Ctrl+Tab` | Next session | | `Ctrl+K` | Kill all sessions | | `Ctrl+L` | Clear terminal | | `Ctrl+Shift+R` | Restore terminal size | | `Ctrl/Cmd +/-` | Font size | | `Escape` | Close panels | --- ## API ### Sessions | Method | Endpoint | Description | |--------|----------|-------------| | `GET` | `/api/sessions` | List all | | `POST` | `/api/quick-start` | Create case + start session | | `DELETE` | `/api/sessions/:id` | Delete session | | `POST` | `/api/sessions/:id/input` | Send input | ### Respawn | Method | Endpoint | Description | |--------|----------|-------------| | `POST` | `/api/sessions/:id/respawn/enable` | Enable with config + timer | | `POST` | `/api/sessions/:id/respawn/stop` | Stop controller | | `PUT` | `/api/sessions/:id/respawn/config` | Update config | ### Ralph / Todo | Method | Endpoint | Description | |--------|----------|-------------| | `GET` | `/api/sessions/:id/ralph-state` | Get loop state + todos | | `POST` | `/api/sessions/:id/ralph-config` | Configure tracking | ### Subagents | Method | Endpoint | Description | |--------|----------|-------------| | `GET` | `/api/subagents` | List all background agents | | `GET` | `/api/subagents/:id` | Agent info and status | | `GET` | `/api/subagents/:id/transcript` | Full activity transcript | | `DELETE` | `/api/subagents/:id` | Kill agent process | ### System | Method | Endpoint | Description | |--------|----------|-------------| | `GET` | `/api/events` | SSE stream | | `GET` | `/api/status` | Full app state | | `POST` | `/api/hook-event` | Hook callbacks | | `GET` | `/api/sessions/:id/run-summary` | Timeline + stats | --- ## Architecture ```mermaid flowchart TB subgraph Claudeman["CLAUDEMAN"] subgraph Frontend["Frontend Layer"] UI["Web UI
xterm.js + Agent Windows"] API["REST API
Fastify"] SSE["SSE Events
/api/events"] end subgraph Core["Core Layer"] SM["Session Manager"] S1["Session (PTY)"] S2["Session (PTY)"] RC["Respawn Controller"] end subgraph Detection["Detection Layer"] RT["Ralph Tracker"] SW["Subagent Watcher
~/.claude/projects/*/subagents"] end subgraph Persistence["Persistence Layer"] SCR["Mux Manager
(tmux)"] SS["State Store
state.json"] end subgraph External["External"] CLI["Claude CLI"] BG["Background Agents
(Task tool)"] end end UI <--> API API <--> SSE API --> SM SM --> S1 SM --> S2 SM --> RC SM --> SS S1 --> RT S1 --> SCR S2 --> SCR RC --> SCR SCR --> CLI SW --> BG SW --> SSE ``` --- ## Development ```bash npm install npx tsx src/index.ts web # Dev mode npm run build # Production build npm test # Run tests ``` See [CLAUDE.md](./CLAUDE.md) for full documentation. --- ## Published Packages ### [`xterm-zerolag-input`](https://www.npmjs.com/package/xterm-zerolag-input) [![npm](https://img.shields.io/npm/v/xterm-zerolag-input?style=flat-square&color=22c55e)](https://www.npmjs.com/package/xterm-zerolag-input) Instant keystroke feedback overlay for xterm.js. Eliminates perceived input latency over high-RTT connections by rendering typed characters immediately as a pixel-perfect DOM overlay. Zero dependencies, configurable prompt detection, full state machine with 78 tests. ```bash npm install xterm-zerolag-input ``` [Full documentation](packages/xterm-zerolag-input/README.md) --- ## License MIT — see [LICENSE](LICENSE) ---

Track sessions. Visualize agents. Control respawn. Let it run while you sleep.
