Claudeman

The missing control plane for Claude Code

Agent Visualization • Zero-Lag Input Overlay • Mobile-First UI • Respawn Controller • Multi-Session Dashboard

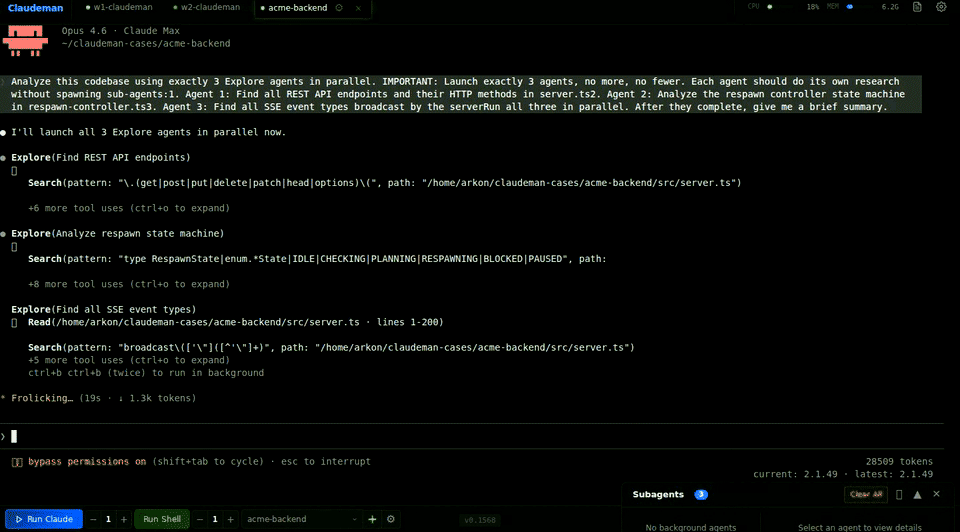

Claudeman — parallel subagent visualization

--- ## Quick Start - Installation ```bash curl -fsSL https://raw.githubusercontent.com/Ark0N/claudeman/master/install.sh | bash ``` This installs Node.js, tmux, and Claude CLI if missing, clones Claudeman to `~/.claudeman/app`, builds it. After install: ```bash claudeman web # Open http://localhost:3000 — press Ctrl+Enter to start your first session ``` **Update to latest version:** ```bash curl -fsSL https://raw.githubusercontent.com/Ark0N/claudeman/master/install.sh | bash -s update ```

Run as a background service

**Linux (systemd):** ```bash mkdir -p ~/.config/systemd/user && printf '[Unit]\nDescription=Claudeman Web Server\nAfter=network.target\n\n[Service]\nType=simple\nExecStart=%s %s/dist/index.js web\nRestart=always\nRestartSec=10\n\n[Install]\nWantedBy=default.target\n' "$(which node)" "$HOME/.claudeman/app" > ~/.config/systemd/user/claudeman-web.service && systemctl --user daemon-reload && systemctl --user enable --now claudeman-web && loginctl enable-linger $USER ``` **macOS (launchd):** ```bash mkdir -p ~/Library/LaunchAgents && printf '\n\nLabelcom.claudeman.webProgramArguments%s%s/dist/index.jswebRunAtLoadKeepAliveStandardOutPath/tmp/claudeman.logStandardErrorPath/tmp/claudeman.log\n' "$(which node)" "$HOME/.claudeman/app" > ~/Library/LaunchAgents/com.claudeman.web.plist && launchctl load ~/Library/LaunchAgents/com.claudeman.web.plist ```

Windows (WSL)

```powershell wsl bash -c "curl -fsSL https://raw.githubusercontent.com/Ark0N/claudeman/master/install.sh | bash" ``` Claudeman requires tmux, so Windows users need [WSL](https://learn.microsoft.com/en-us/windows/wsl/install). If you don't have WSL yet: run `wsl --install` in an admin PowerShell, reboot, open Ubuntu, then install Claude CLI inside WSL: `curl -fsSL https://claude.ai/install.sh | bash`. After installing, `http://localhost:3000` is accessible from your Windows browser.

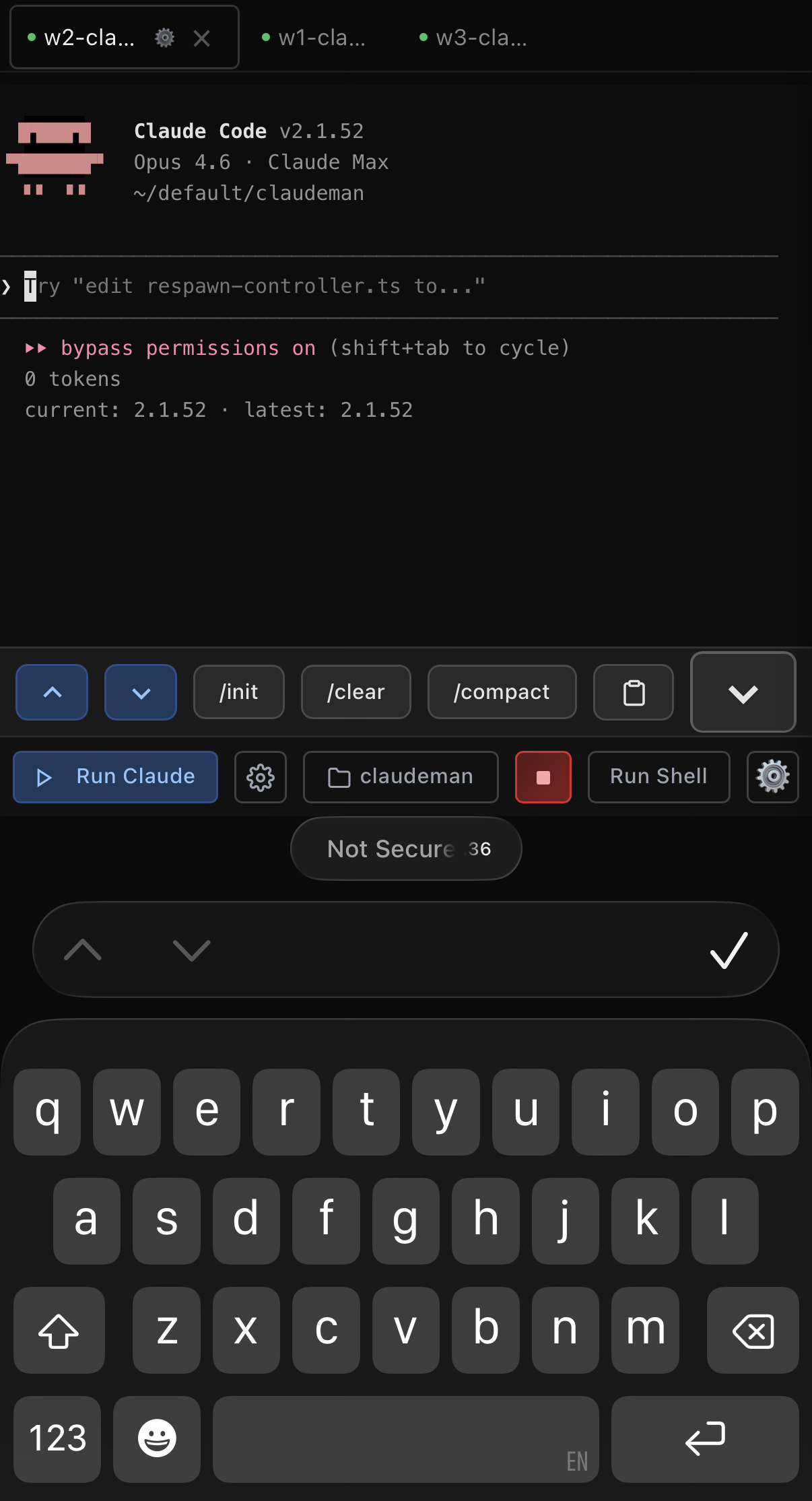

--- ## Mobile-Optimized Web UI The most responsive Claude Code experience on any phone. Full xterm.js terminal with local echo, swipe navigation, and a touch-optimized interface designed for real remote work.

	Terminal Apps	Claudeman Mobile
	200-300ms input lag over remote	Local echo — instant feedback
	Tiny text, no context	Full xterm.js terminal, responsive layout
	No session management	Swipe between sessions
	No notifications	Push alerts for approvals and idle
	Manual reconnect after drops	tmux persistence
	No agent visibility	Background agents in real-time
	Copy-paste slash commands	One-tap `/init`

- **Swipe navigation** — left/right on the terminal to switch sessions (80px threshold, 300ms) - **Keyboard accessory bar** — `/init`, `/clear`, `/compact` quick-action buttons above the virtual keyboard. Destructive commands (`/clear`, `/compact`) require a double-press to confirm — first tap arms the button, second tap executes — so you never fire one by accident on a bumpy commute - **Smart keyboard handling** — toolbar and terminal shift up when keyboard opens (uses `visualViewport` API with 100px threshold for iOS address bar drift) - **Safe area support** — respects iPhone notch and home indicator via `env(safe-area-inset-*)` - **44px touch targets** — all buttons meet iOS Human Interface Guidelines minimum sizes - **Bottom sheet case picker** — slide-up modal replaces the desktop dropdown - **Native momentum scrolling** — `-webkit-overflow-scrolling: touch` for buttery scroll ```bash claudeman web --https # Open on your phone: https://:3000 ``` > `localhost` works over plain HTTP. Use `--https` when accessing from another device, or use [Tailscale](https://tailscale.com/) (recommended) — it provides a private network so you can access `http://:3000` from your phone without TLS certificates. --- ## Live Agent Visualization Watch Claude's background agents work in real-time. Claudeman monitors every `Task` tool invocation and displays each agent in a draggable floating window with animated Matrix-style connection lines back to the parent session.

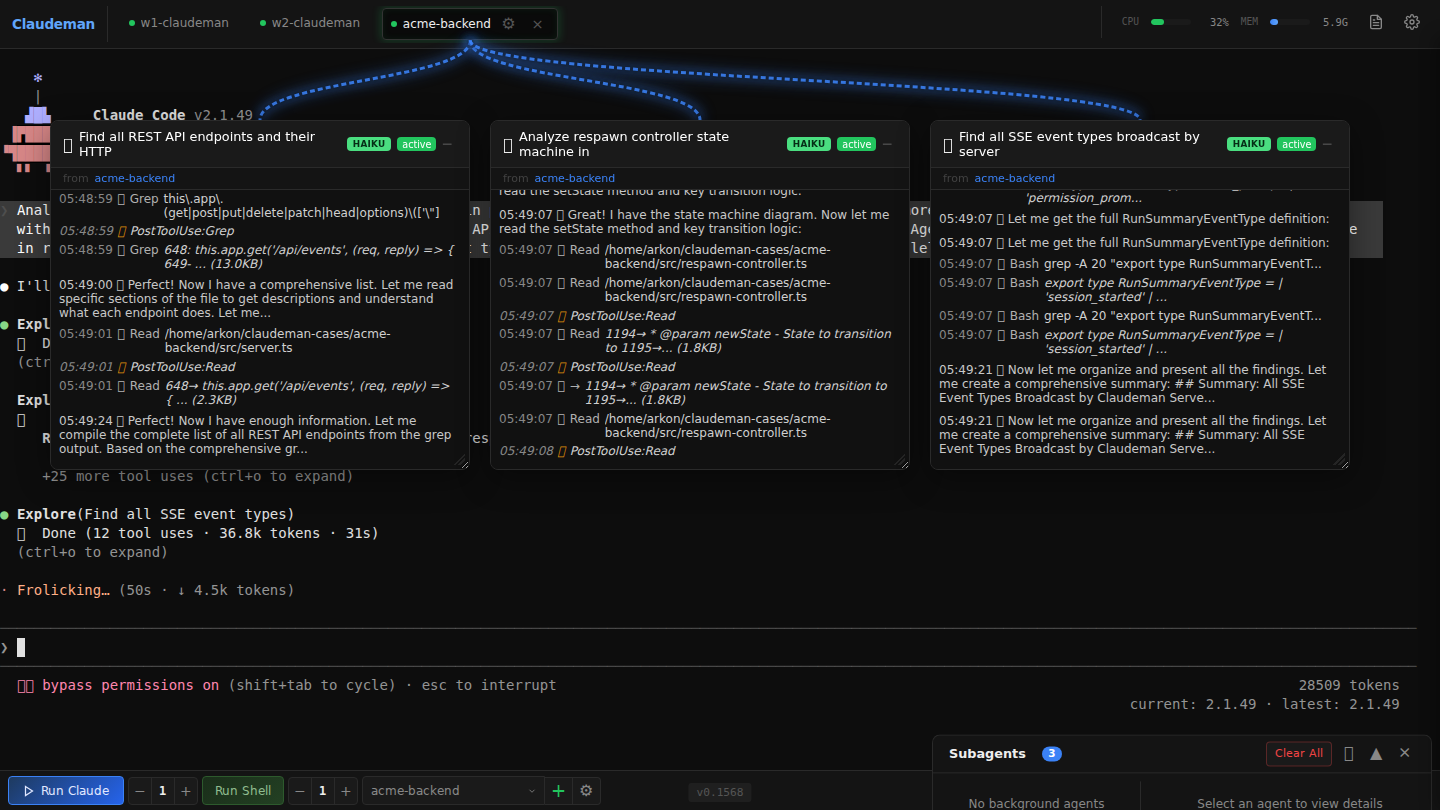

Subagent Visualization

- **Floating terminal windows** — draggable, resizable panels for each agent with a live activity log showing every tool call, file read, and progress update as it happens - **Connection lines** — animated green lines linking parent sessions to their child agents, updating in real-time as agents spawn and complete - **Status & model badges** — green (active), yellow (idle), blue (completed) indicators with Haiku/Sonnet/Opus model color coding - **Auto-behavior** — windows auto-open on spawn, auto-minimize on completion, tab badge shows "AGENT" or "AGENTS (n)" count - **Nested agents** — supports 3-level hierarchies (lead session -> teammate agents -> sub-subagents) --- ## Zero-Lag Input Overlay When accessing Claude Code remotely (VPN, Tailscale, SSH tunnel), every keystroke normally takes 200-300ms to round-trip. Claudeman implements a **Mosh-inspired local echo system** that makes typing feel instant regardless of latency. A pixel-perfect DOM overlay inside xterm.js renders keystrokes at 0ms. Background forwarding silently sends every character to the PTY in 50ms debounced batches, so Tab completion, `Ctrl+R` history search, and all shell features work normally. When the server echo arrives 200-300ms later, the overlay seamlessly disappears and the real terminal text takes over — the transition is invisible. - **Ink-proof architecture** — lives as a `` at z-index 7 inside `.xterm-screen`, completely immune to Ink's constant screen redraws (two previous attempts using `terminal.write()` failed because Ink corrupts injected buffer content) - **Font-matched rendering** — reads `fontFamily`, `fontSize`, `fontWeight`, and `letterSpacing` from xterm.js computed styles so overlay text is visually indistinguishable from real terminal output - **Full editing** — backspace, retype, paste (multi-char), cursor tracking, multi-line wrap when input exceeds terminal width - **Persistent across reconnects** — unsent input survives page reloads via localStorage - **Enabled by default** — works on both desktop and mobile, during idle and busy sessions > Extracted as a standalone library: [`xterm-zerolag-input`](https://www.npmjs.com/package/xterm-zerolag-input) — see [Published Packages](#published-packages). --- ## Respawn Controller The core of autonomous work. When Claude goes idle, the Respawn Controller detects it, sends a continue prompt, cycles `/clear` -> `/init` for fresh context, and resumes — running **24+ hours** completely unattended. ``` WATCHING → IDLE DETECTED → SEND UPDATE → /clear → /init → CONTINUE → WATCHING ``` - **Multi-layer idle detection** — completion messages, AI-powered idle check, output silence, token stability - **Circuit breaker** — prevents respawn thrashing when Claude is stuck (CLOSED -> HALF_OPEN -> OPEN states, tracks consecutive no-progress and repeated errors) - **Health scoring** — 0-100 health score with component scores for cycle success, circuit breaker state, iteration progress, and stuck recovery - **Built-in presets** — `solo-work` (3s idle, 60min), `subagent-workflow` (45s, 240min), `team-lead` (90s, 480min), `ralph-todo` (8s, 480min), `overnight-autonomous` (10s, 480min) --- ## Multi-Session Dashboard Run **20 parallel sessions** with full visibility — real-time xterm.js terminals at 60fps, per-session token and cost tracking, tab-based navigation, and one-click management.

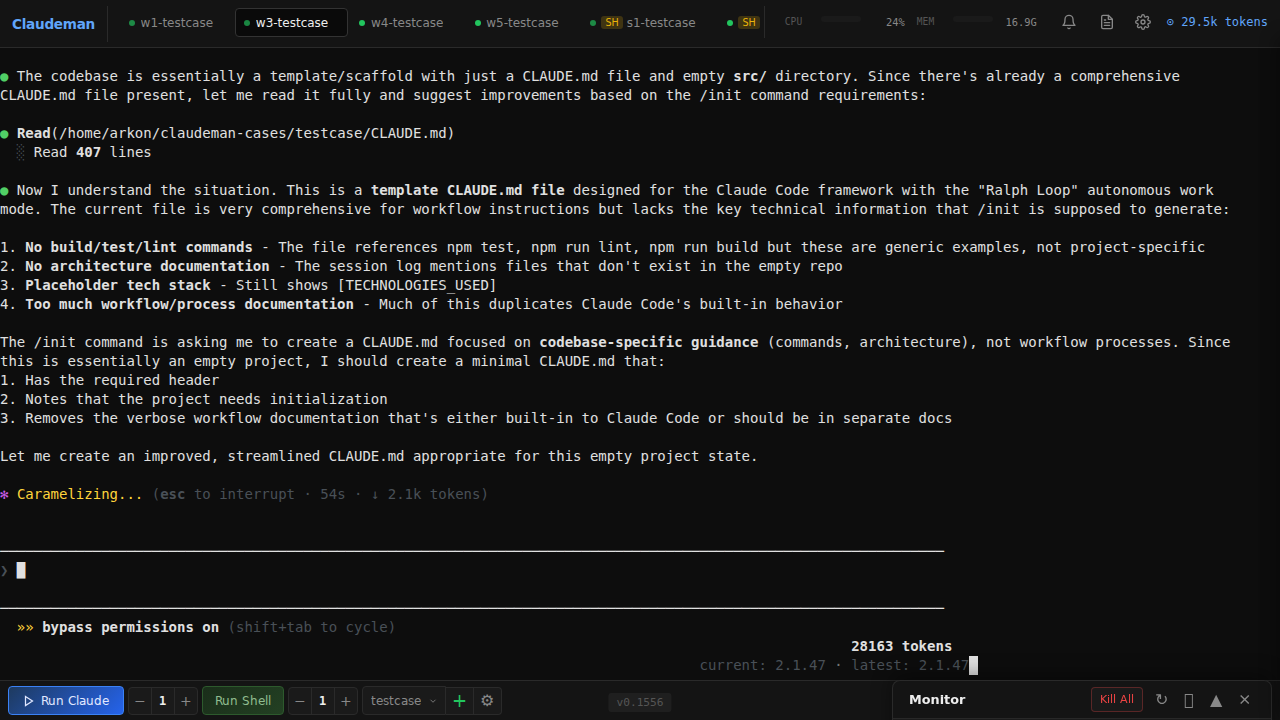

Multi-Session Dashboard

### Persistent Sessions Every session runs inside **tmux** — sessions survive server restarts, network drops, and machine sleep. Auto-recovery on startup with dual redundancy. Ghost session discovery finds orphaned tmux sessions. Claude knows it's managed and won't kill its own session. ### Smart Token Management | Threshold | Action | Result | |-----------|--------|--------| | **110k tokens** | Auto `/compact` | Context summarized, work continues | | **140k tokens** | Auto `/clear` | Fresh start with `/init` | ### Notifications Real-time desktop alerts when sessions need attention — `permission_prompt` and `elicitation_dialog` trigger critical red tab blinks, `idle_prompt` triggers yellow blinks. Click any notification to jump directly to the affected session. Hooks auto-configured per case directory. ### Ralph / Todo Tracking Auto-detects Ralph Loops, `` tags, TodoWrite progress (`4/9 complete`), and iteration counters (`[5/50]`) with real-time progress rings and elapsed time tracking.

### Run Summary Click the chart icon on any session tab to see a timeline of everything that happened — respawn cycles, token milestones, auto-compact triggers, idle/working transitions, hook events, errors, and more. ### Zero-Flicker Terminal Claude Code uses Ink (React for terminals) which redraws the entire screen on every state change. Claudeman implements a 6-layer anti-flicker pipeline for smooth 60fps output across all sessions: ``` PTY Output → 16ms Server Batch → DEC 2026 Wrap → SSE → Client rAF → xterm.js (60fps) ``` --- ## SSH Alternative (`sc`) If you prefer SSH (Termius, Blink, etc.), the `sc` command is a thumb-friendly session chooser: ```bash sc # Interactive chooser sc 2 # Quick attach to session 2 sc -l # List sessions ``` Single-digit selection (1-9), color-coded status, token counts, auto-refresh. Detach with `Ctrl+A D`. --- ## Keyboard Shortcuts | Shortcut | Action | |----------|--------| | `Ctrl+Enter` | Quick-start session | | `Ctrl+W` | Close session | | `Ctrl+Tab` | Next session | | `Ctrl+K` | Kill all sessions | | `Ctrl+L` | Clear terminal | | `Ctrl+Shift+R` | Restore terminal size | | `Ctrl/Cmd +/-` | Font size | | `Escape` | Close panels | --- ## API ### Sessions | Method | Endpoint | Description | |--------|----------|-------------| | `GET` | `/api/sessions` | List all | | `POST` | `/api/quick-start` | Create case + start session | | `DELETE` | `/api/sessions/:id` | Delete session | | `POST` | `/api/sessions/:id/input` | Send input | ### Respawn | Method | Endpoint | Description | |--------|----------|-------------| | `POST` | `/api/sessions/:id/respawn/enable` | Enable with config + timer | | `POST` | `/api/sessions/:id/respawn/stop` | Stop controller | | `PUT` | `/api/sessions/:id/respawn/config` | Update config | ### Ralph / Todo | Method | Endpoint | Description | |--------|----------|-------------| | `GET` | `/api/sessions/:id/ralph-state` | Get loop state + todos | | `POST` | `/api/sessions/:id/ralph-config` | Configure tracking | ### Subagents | Method | Endpoint | Description | |--------|----------|-------------| | `GET` | `/api/subagents` | List all background agents | | `GET` | `/api/subagents/:id` | Agent info and status | | `GET` | `/api/subagents/:id/transcript` | Full activity transcript | | `DELETE` | `/api/subagents/:id` | Kill agent process | ### System | Method | Endpoint | Description | |--------|----------|-------------| | `GET` | `/api/events` | SSE stream | | `GET` | `/api/status` | Full app state | | `POST` | `/api/hook-event` | Hook callbacks | | `GET` | `/api/sessions/:id/run-summary` | Timeline + stats | --- ## Architecture ```mermaid flowchart TB subgraph Claudeman["CLAUDEMAN"] subgraph Frontend["Frontend Layer"] UI["Web UI
xterm.js + Agent Windows"] API["REST API
Fastify"] SSE["SSE Events
/api/events"] end subgraph Core["Core Layer"] SM["Session Manager"] S1["Session (PTY)"] S2["Session (PTY)"] RC["Respawn Controller"] end subgraph Detection["Detection Layer"] RT["Ralph Tracker"] SW["Subagent Watcher
~/.claude/projects/*/subagents"] end subgraph Persistence["Persistence Layer"] SCR["Mux Manager
(tmux)"] SS["State Store
state.json"] end subgraph External["External"] CLI["Claude CLI"] BG["Background Agents
(Task tool)"] end end UI <--> API API <--> SSE API --> SM SM --> S1 SM --> S2 SM --> RC SM --> SS S1 --> RT S1 --> SCR S2 --> SCR RC --> SCR SCR --> CLI SW --> BG SW --> SSE ``` --- ## Development ```bash npm install npx tsx src/index.ts web # Dev mode npm run build # Production build npm test # Run tests ``` See [CLAUDE.md](./CLAUDE.md) for full documentation. --- ## Published Packages ### [`xterm-zerolag-input`](https://www.npmjs.com/package/xterm-zerolag-input) [![npm](https://img.shields.io/npm/v/xterm-zerolag-input?style=flat-square&color=22c55e)](https://www.npmjs.com/package/xterm-zerolag-input) Instant keystroke feedback overlay for xterm.js. Eliminates perceived input latency over high-RTT connections by rendering typed characters immediately as a pixel-perfect DOM overlay. Zero dependencies, configurable prompt detection, full state machine with 78 tests. ```bash npm install xterm-zerolag-input ``` [Full documentation](packages/xterm-zerolag-input/README.md) --- ## License MIT — see [LICENSE](LICENSE) ---

Track sessions. Visualize agents. Control respawn. Let it run while you sleep.
